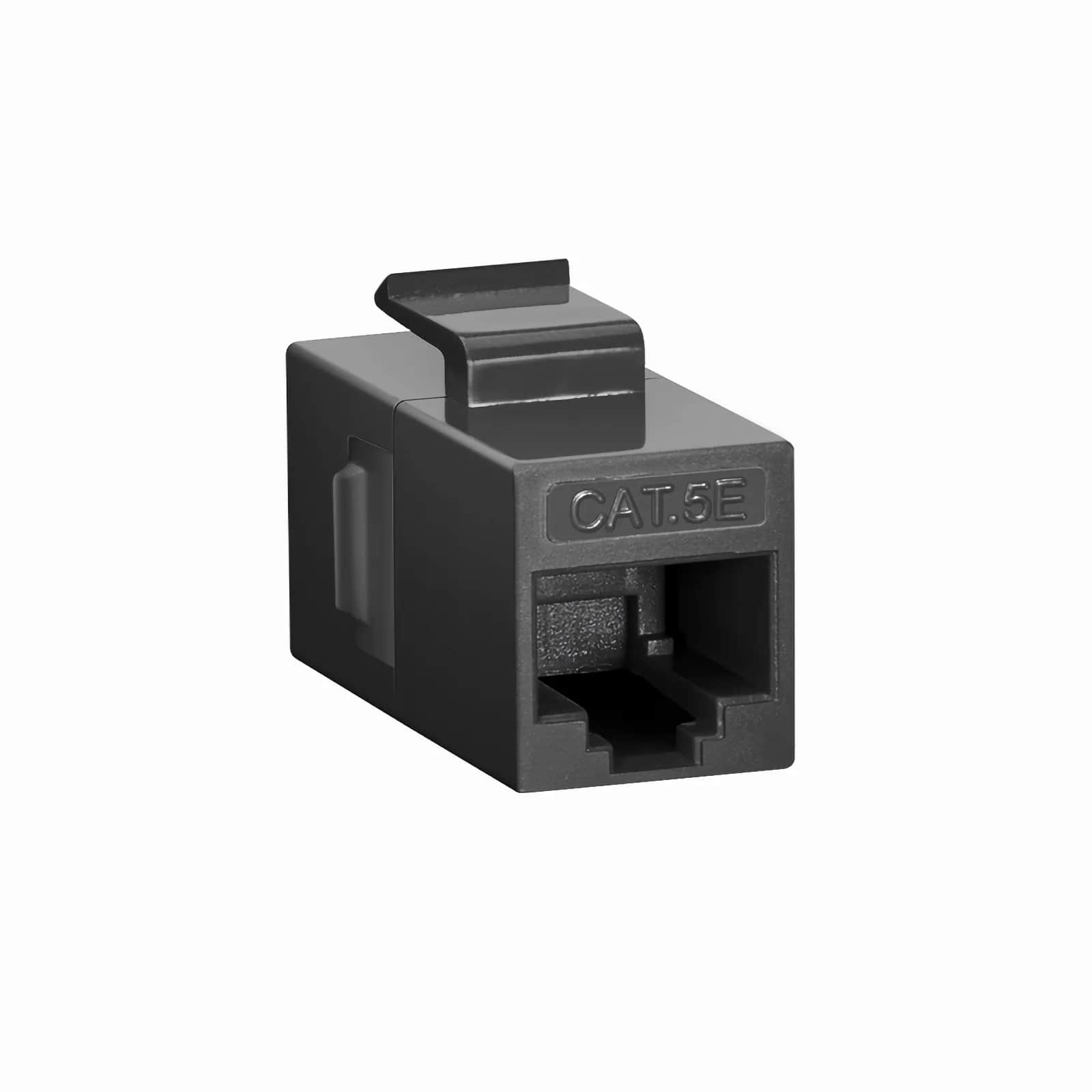

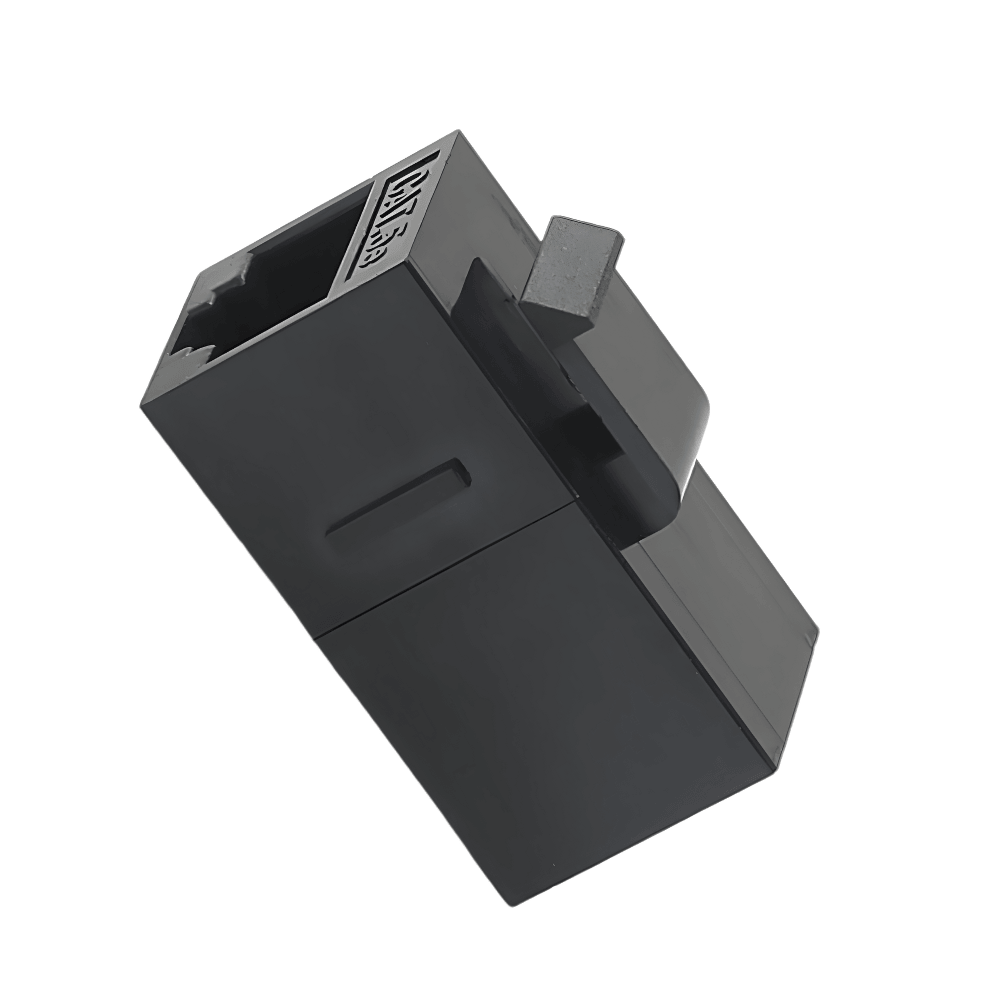

Cat 5e UTP Keystone Jack Inline Coupler
Features :
Stand-alone Use, or Mounted in a Faceplate or Patch Panel
Easy to Disassemble and environmentally Friendly
Female to Female Insert Inline Coupler
Comply with Category 5e (CAT 5E)ANSI/TIA-568.2-D
Meet ISO/lEC 11801:2017 Class D and EN50173-1
Support PoE/PoE+ (IEEE 802.3i/)
RJ45 JACK to RJ45 JACK
Specification :
Product Type | Cat5e | Conductor Gauges Supported | 22-32 AWG Cable |
Connector | RJ45 Female to RJ45 Female | Wiring Scheme | T568A/T568B |
Application | Unshielded | Dimensions | 0.63"x0.57"x1.26" (16x14.5x32mm) Ref |
Data Rate Support | 1000Base-T | Operating Temperature | -10°C to 65°C |
Contact | 8P8C | Type | 180° |
Material | Plastic | Color | Black(or Customized) |
