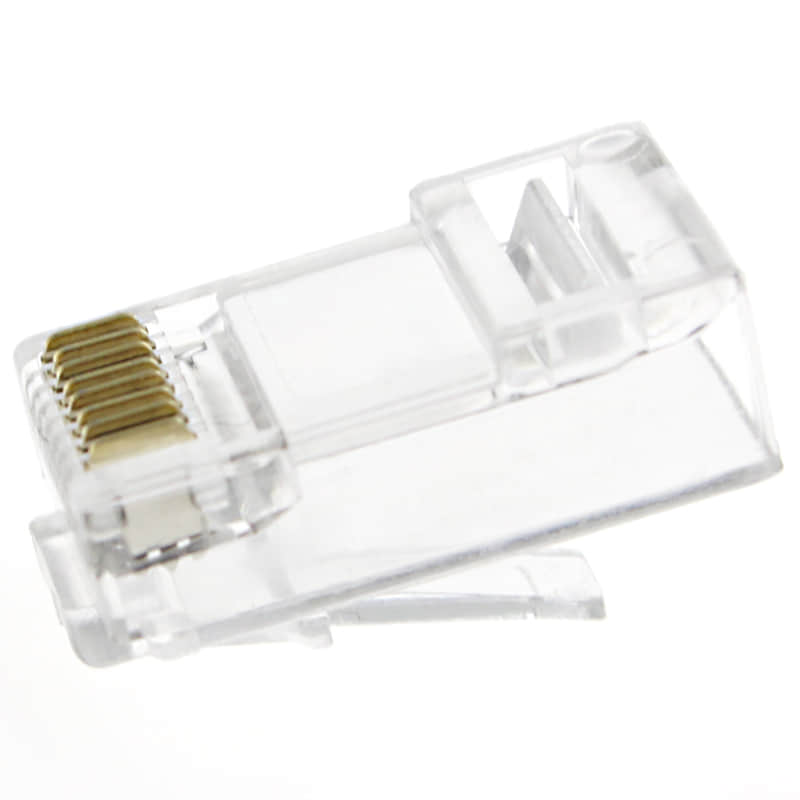

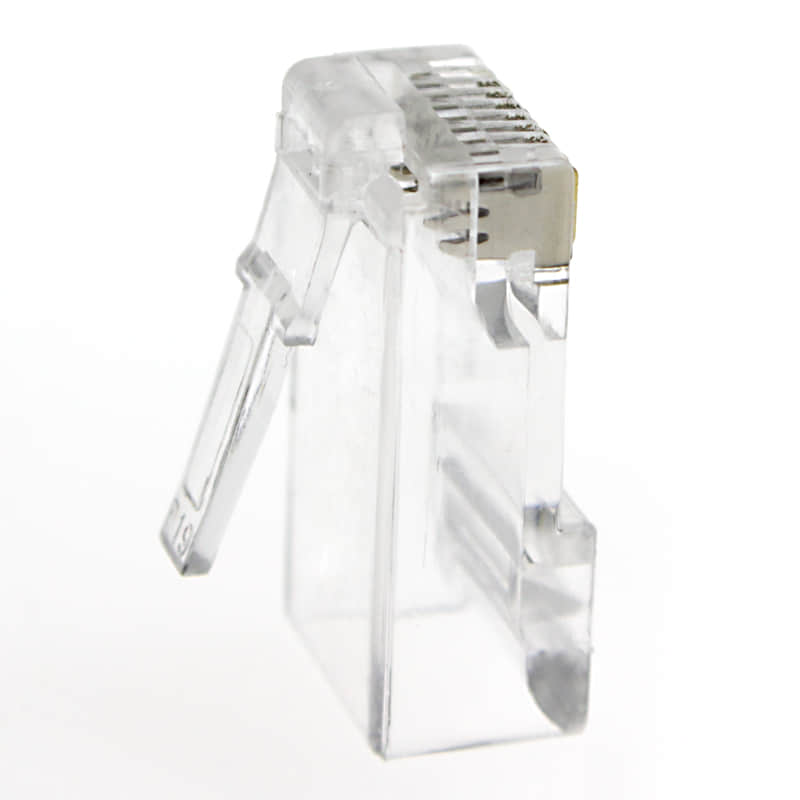

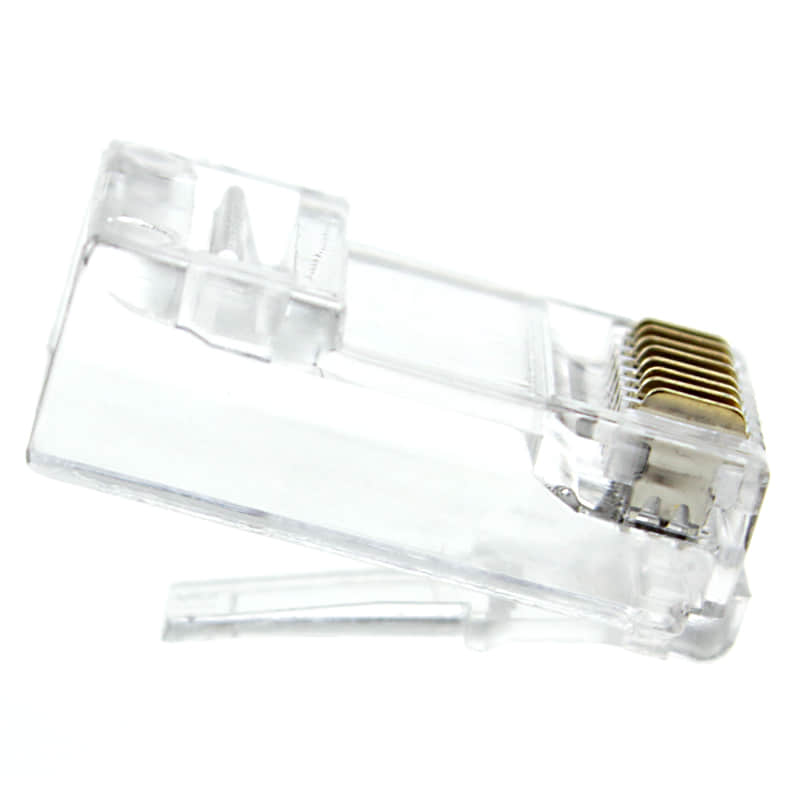

CAT5e UTP Modular Plug
Features :
Fransparent to see the 3 prong contacts and wire
Meet ANSI/TIA-568.2-D Category 5e, ISO/IEC 11801:2017 Class Dand EN-50173-1
Apply for 10/100/1000 BASE-T,2.5G BASE-T,IEEE 802.3i/u/ab/bz, PoE/PoE+
3 Contact points, Phosphor Bronze gold plating
Product Type | Modular Plug | Connector | RJ45 Male |
Cable Type | Cat5e Unshielded | Data Rate Support | 1000Base-T |
Compatibility | Solid or Stranded Cables | Wire Gauge Supported | 24AWG |
Wiring Scheme | T568A & T568B | Operating Temperature | -40°C to 85°C |
