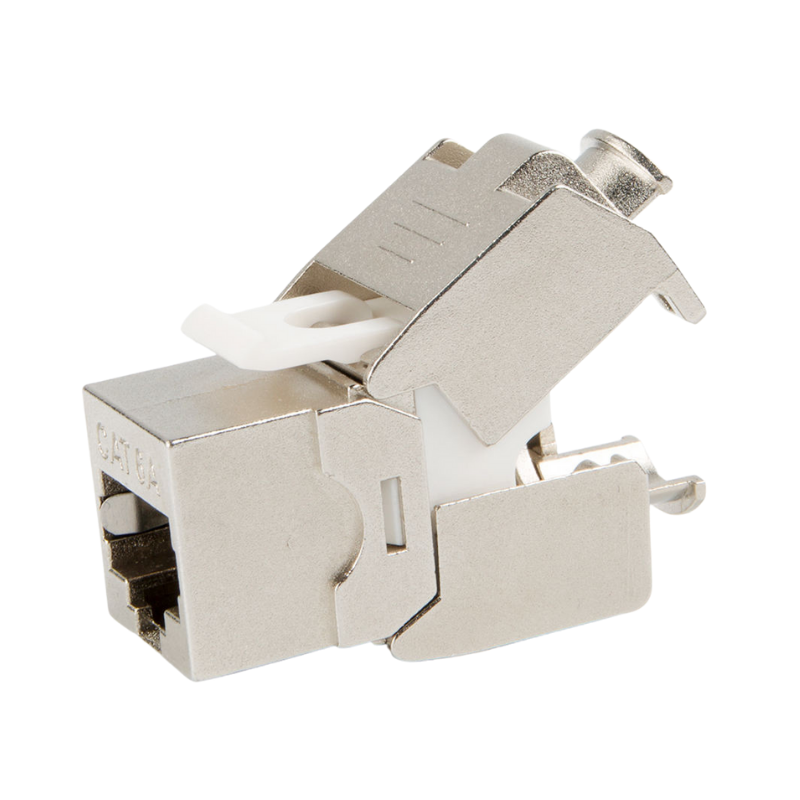

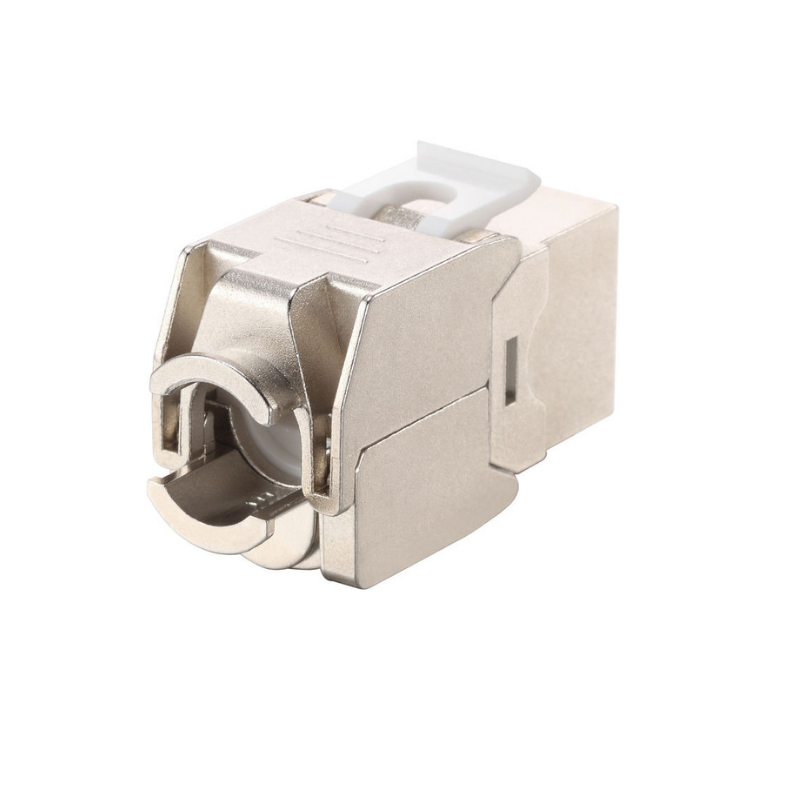

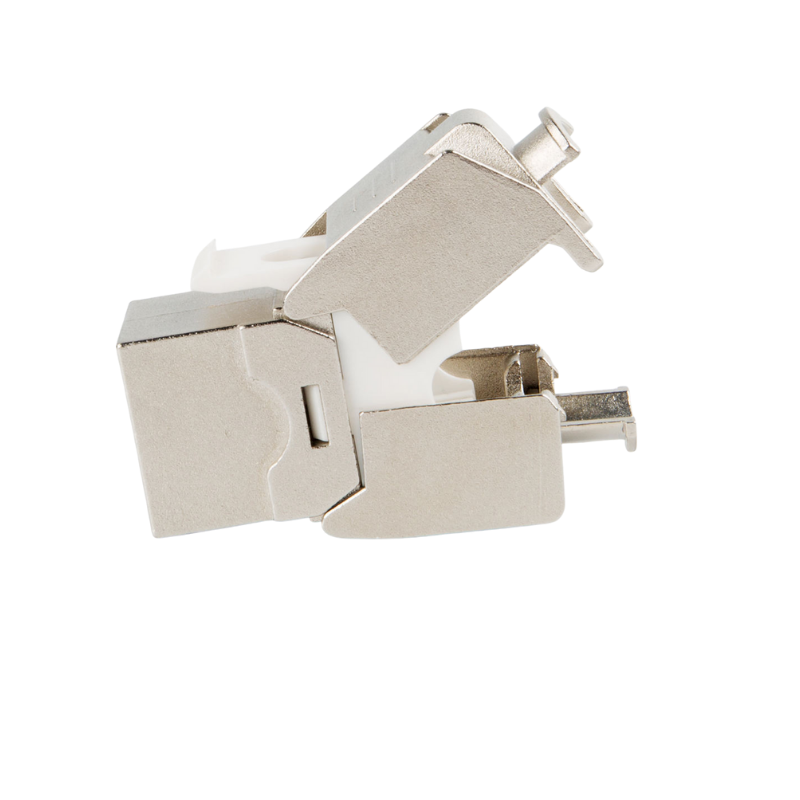

CAT6a STP Keystone Jack ,180 Degree

CAT6 RJ45 information module 180 degree shield free wire network module cat6a module with customizable

Features :

Easy to Disassemble and environmentally Friendly

Meet ANSI/TIA-568.2-D Category 6A, ISO/IEC11801 : 2017

Class EA: 10/100/1000 BASE-T,2.5G/5G,10G BASE-T

Support: PoE/PoE+

Verified by IEC60512-99-001 and IEC60512-99-002 to Meet Critical Electrical Requirements

Superior Shielding to Suppress EMI/RFI, NEXT and AXT Crosstalk

Supports IEEE802.3af/at/bt, Complies with HD Base-T Power Standards up to 100w

Specification :

Product Type: Cat6A KEYSTONE JACK 180 Degree

Connector : RJ45

Application:Shielded

Contact:8P8C

Gender:Female

Wire: 23-26

Housing Material :PC

Testing: FLUKE

User for: STP CAT.6A KEYSTONE JACK with LED

Operating Temperature ：-10°C to 70°C

Wiring Scheme : T568A/T568B

Color：Zinc Alloy keystone jack

Data Rate Support: 10GBase-T
