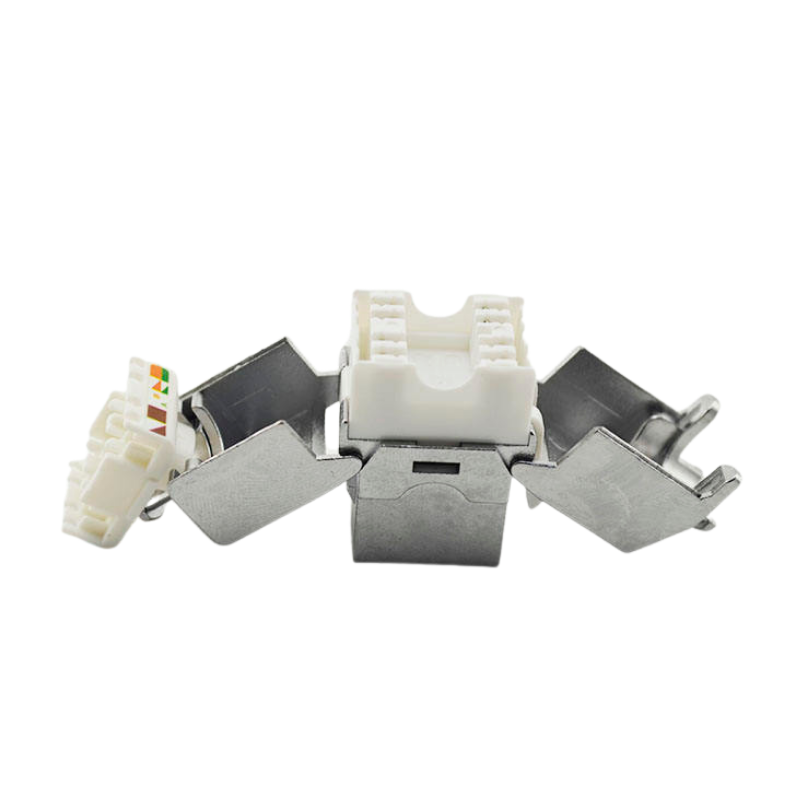

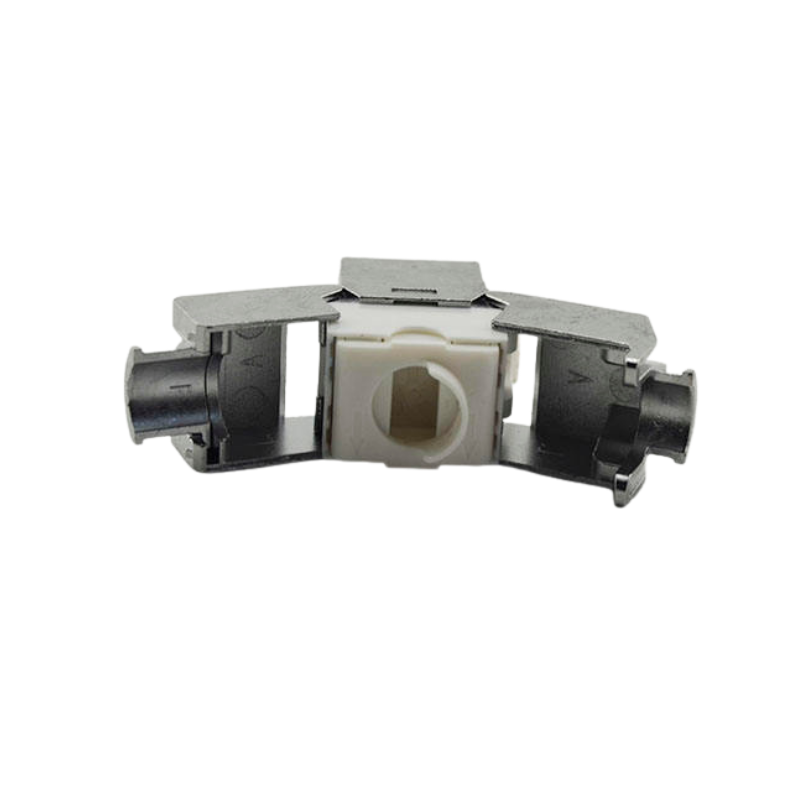

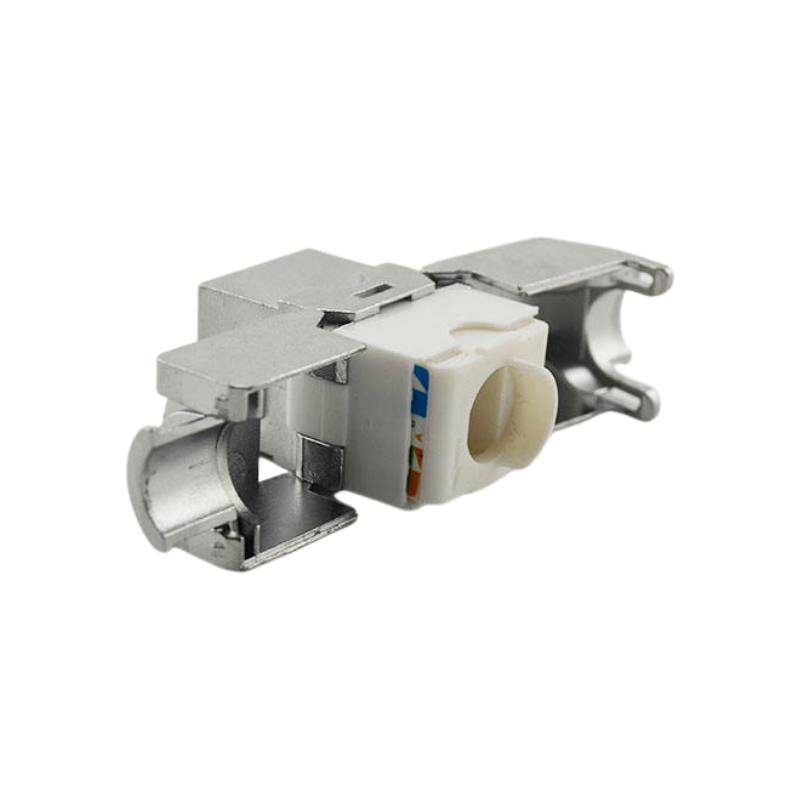

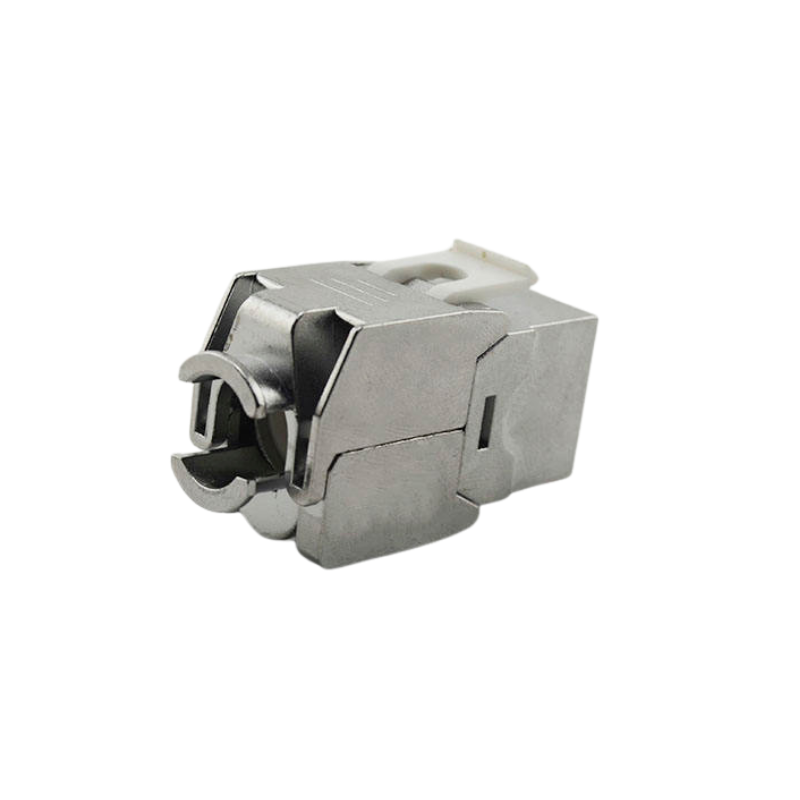

CAT7 STP Tool-Free Keystone Jack
Shielded Tool-free Connection Design RJ45 Cat7 Toolless Zinc Alloy keystone jack
Features :
Easy to Disassemble and environmentally Friendly
Class EA: 10/100/1000 BASE-T,2.5G/5G,10G BASE-T
Support: PoE/PoE+
Superior Shielding to Suppress EMI/RFI, NEXT and AXT Crosstalk
Supports IEEE802.3af/at/bt, Complies with HD Base-T Power Standards up to 100w
Up to 500 MHz, 10GBase T, Fully Compliant with ANSI/TIA/EIA 568-C.2 Standard
Backwards Compatible to 10MB/100MB/1000MB/10GB Ethernet Cat5e Cat6 Cat6a
Support IEEE 802.3af/at/bt, Verified IEC 60512-99-001 & IEC 60512-99-002 Test
The Shielded Keystone Jack, against EMI/RFI, NEXT, and AXT
Specification :
Product Name: Network Cat7 STP Keystone Jack
Connector: RJ45
Application:Shielded
Contact:8P8C
Wire: 22-26 AWG
Gender:Female
Housing Material: ABS
Shell Material: ZINC ALLOY
Testing: FLUKE
User for: STP Cat7 Keystone Jack Toolless Type
Operating Temperature ：-10°C to 70°C
Wiring Scheme: T568A/T568B
Data Rate Support: 10GBase-T
