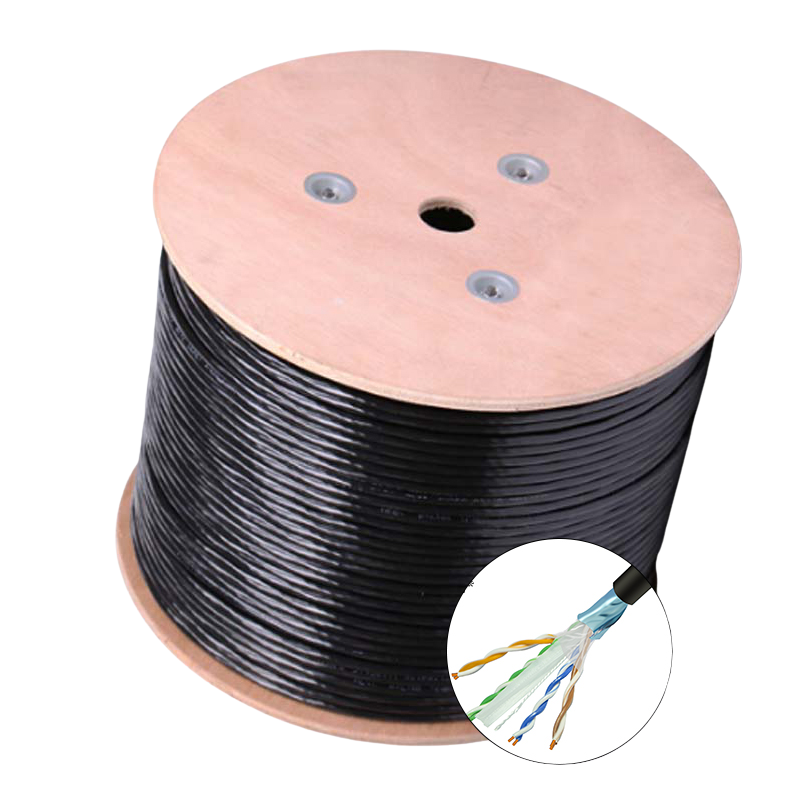

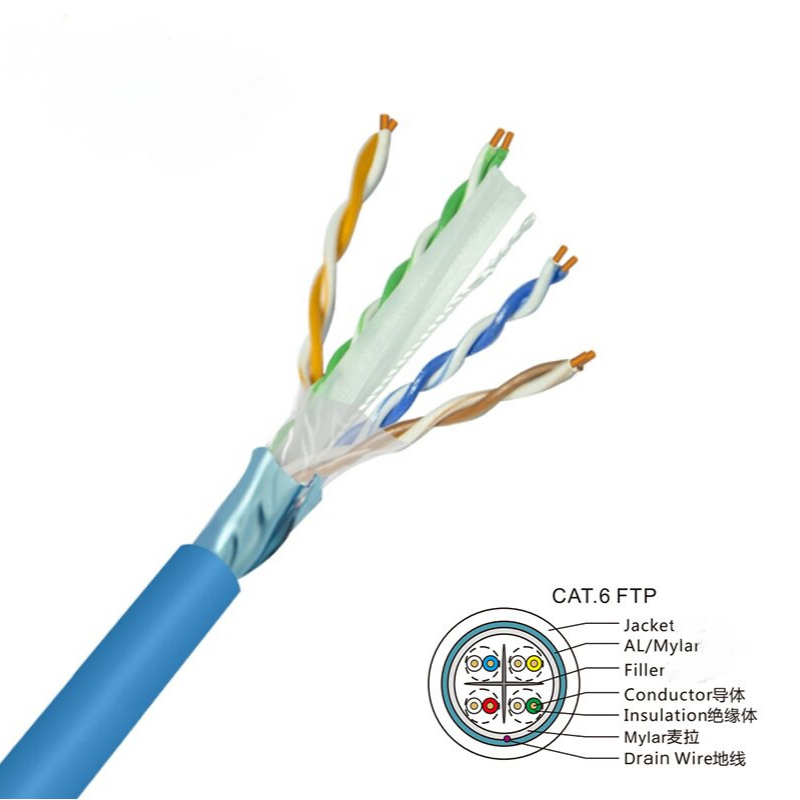

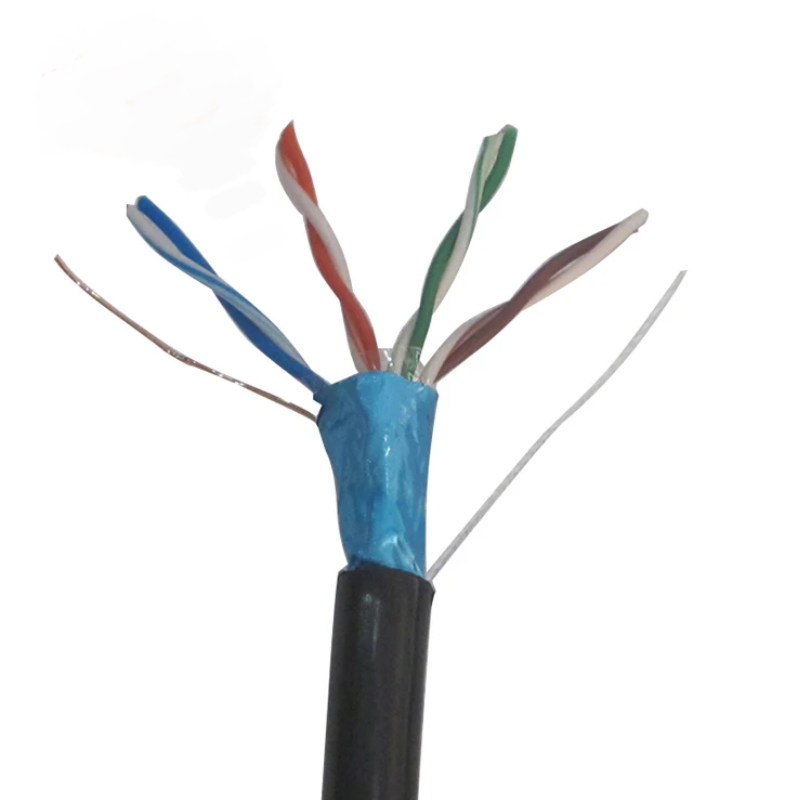

CAT6 F/UTP Lan Cable

Shielded Cat6 Ethernet Lan Cable, 1000ft (305m), 23AWG Solid Pure Bare Copper Wire, PVC/LSZH

Features:

Up to 250MHz with 1/2.5/5G-T Speed, Support PoE/PoE+/PoE++ (IEEE 802.3af/at/bt)

Structure cabling for horizontal and building backbone

Compliant with ISO/IEC11801, ANSI/TIA-568.2-D Fire and Safety Standards

Specification :

Cable Type	Category 6	Shielding Type	F/UTP
Cable Jacket	PVC /LSZH	Cable Length	1000ft (305m)
Reference Bandwidth	250MHz	Data Rate Support	1/2.5/5GBase-T
Wire Gauge	23AWG	Conductor Type	Bare Copper
Putup Type	Reel	Number of Conductors	4 Pair
Conductor Diameter (mm)	0.565 ± 0.01	Cable Outer Diameter (mm)	7.40 ± 0.30
Maximum Installation Tension (N)	110	Bend Radius (mm)	31.2
Cable Color	various	Standard	ISO/IEC11801, ANSI/TIA-568.2-D
Operating Temperature	-15 to 75°C	Installation Temperature	-10 to 60°C
