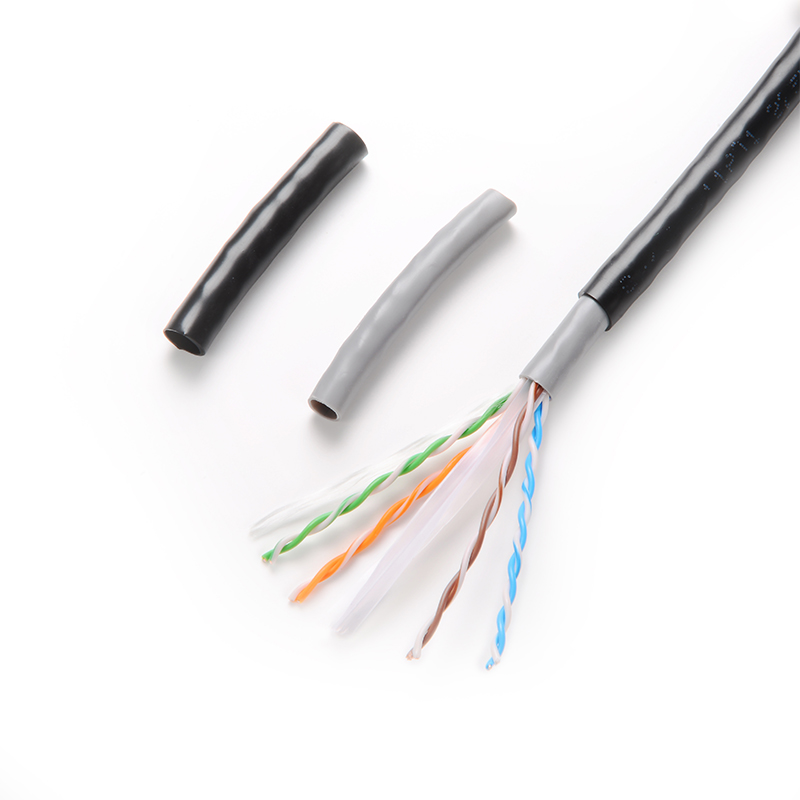

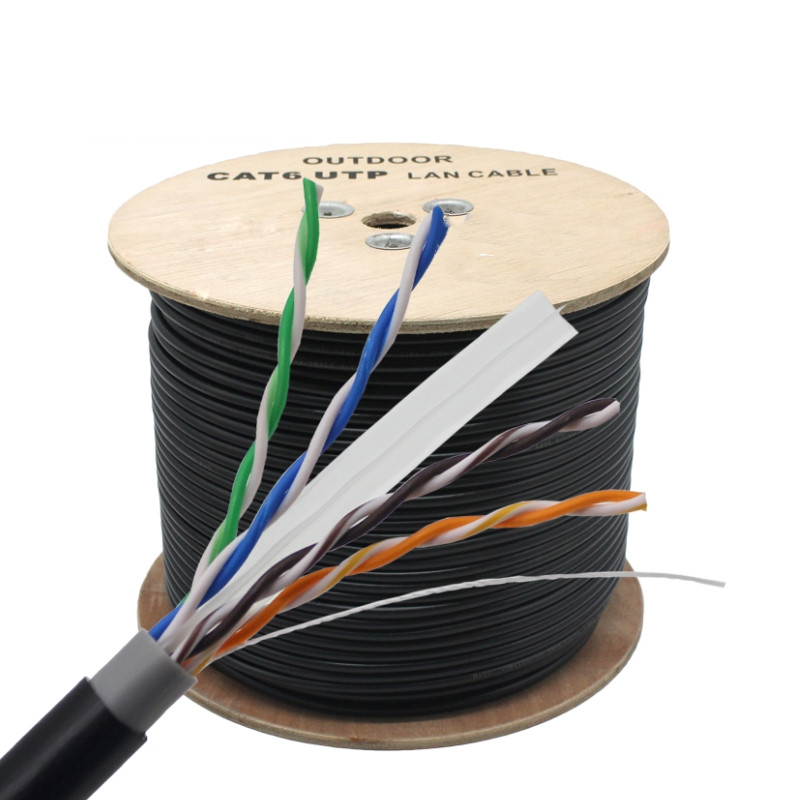

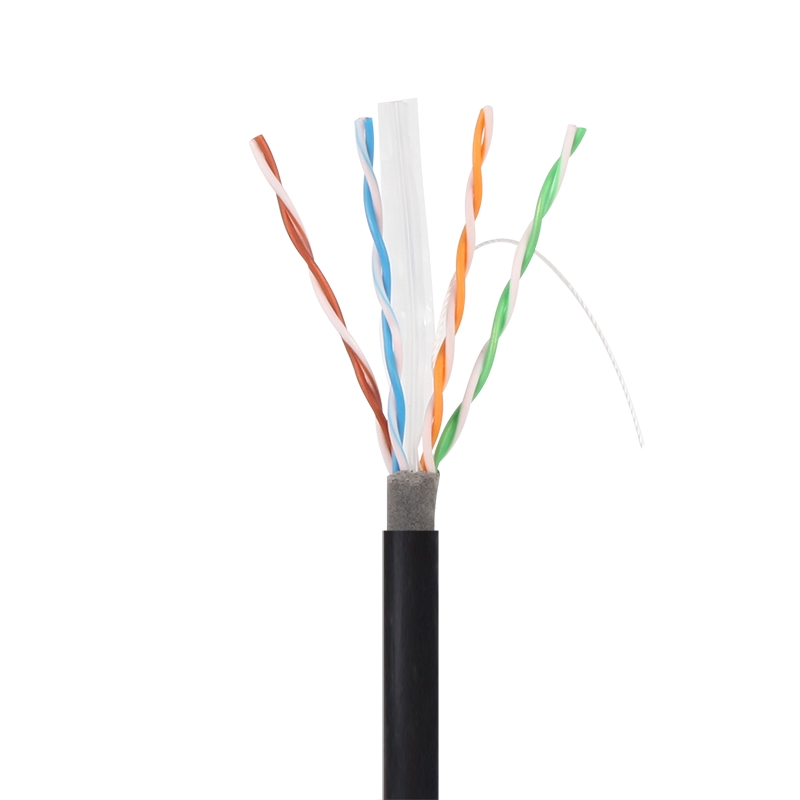

CAT6 U/UTP Lan Cable Outdoor
Unshielded Cat6 Outdoor Ethernet Lan Cable, 1000ft (305m), 23AWG Solid Pure Bare Copper Wire
Features:
Double Jackets to Protect Against Cuts, Scraps and Tearing
UV Resistant Jacket Designed to Withstand Sunlight, Dirt, Snow, and Moisture
Up to 250MHz with 1G/2.5G/5G-T Speed, Support PoE/PoE+/PoE++ (IEEE 802.3af/at/bt)
Wide Temperature Range for Extreme Weather Environments
Tested with a Fluke DSX-8000 Versiv Cable Analyzer
Meets or Exceeds ISO/IEC 11801, ANSI/TIA-568.2-D Standards
Specifications:
Cable Type | Category 6
| Shielding Type | UTP |
Cable Jacket | PVC & LDPE | Cable Length | 1000ft (305m) |
Reference Bandwidth | 250MHz | Data Rate Support | 1G/2.5G/5GBase-T |
Wire Gauge | 23AWG | Conductor Type | Bare Copper |
Putup Type | Reel | Number of Conductors | 4 Pair |
Conductor Diameter (mm) | 0.565 ± 0.01 | Cable Outer Diameter (mm) | 7.50 ± 0.3 |
Maximum Installation Tension (N) | 110 | Bend Radius (mm) | 32 |
Cable Color | various | Standard | ISO/IEC11801, ANSI/TIA-568.2-D |
Operating Temperature | -20 to 75°C | Installation Temperature | -15 to 60°C |
