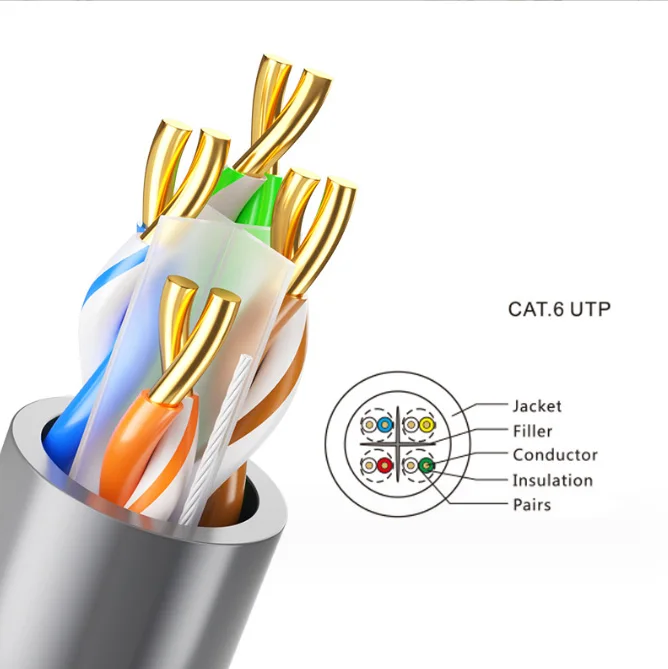

CAT6 U/UTP Lan Cable
Unshielded Cat6 Ethernet Lan Cable, 1000ft (305m), 23AWG Solid Pure Bare Copper Wire, PVC /LSZH
Features:
Up to 250MHz with 1/2.5/5G-T Speed, Support PoE/PoE+/PoE++ (IEEE 802.3af/at/bt)
Structure cabling for horizontal and building backbone
Compliant with ISO/IEC11801, ANSI/TIA-568.2-D Fire and Safety Standards
Specification:
Cable Type | Category 6
| Shielding Type | UTP |
Cable Jacket | PVC /LSZH | Cable Length | 1000ft (305m) |
Reference Bandwidth | 250MHz | Data Rate Support | 1/2.5/5GBase-T |
Wire Gauge | 23AWG | Conductor Type | Bare Copper |
Putup Type | Reel | Number of Conductors | 4 Pair |
Conductor Diameter (mm) | 0.565 ± 0.01 | Cable Outer Diameter (mm) | 6.20 ± 0.30 |
Maximum Installation Tension (N) | 110 | Bend Radius (mm) | 26.4 |
Cable Color | various | Standard | ISO/IEC11801, ANSI/TIA-568.2-D |
Operating Temperature | -15 to 75°C | Installation Temperature | -10 to 60°C |
