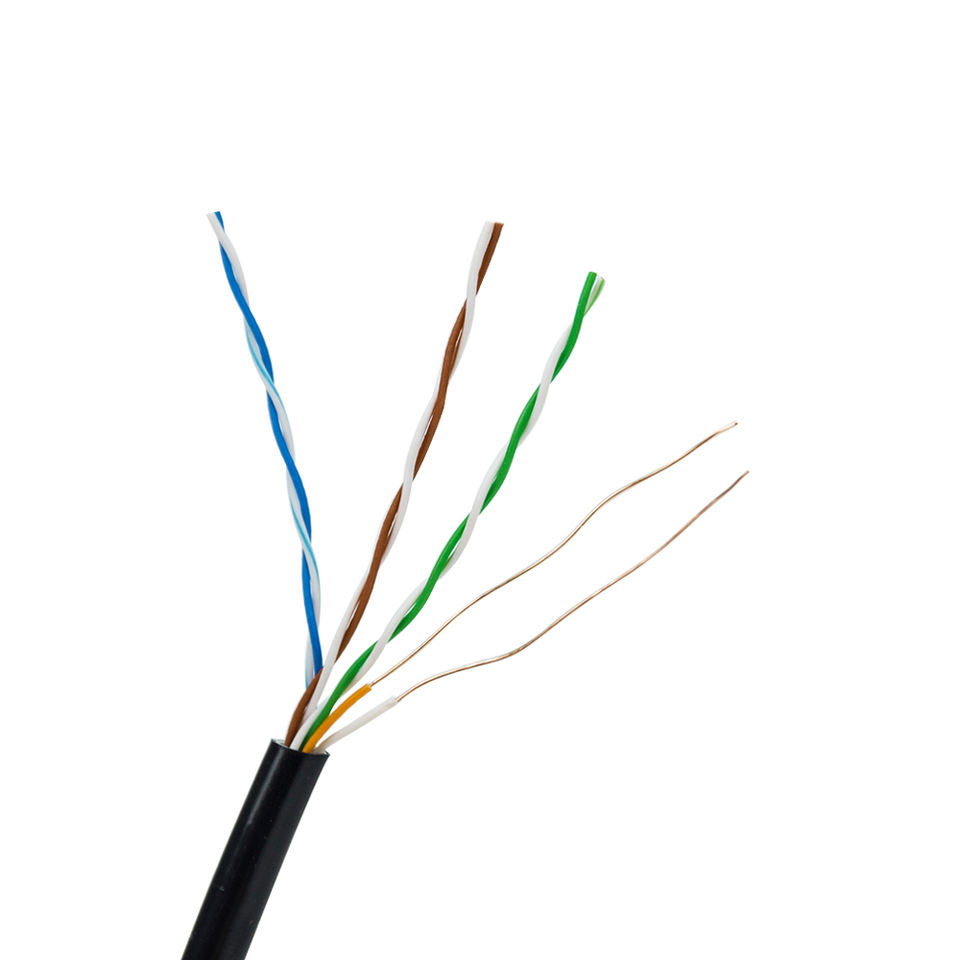

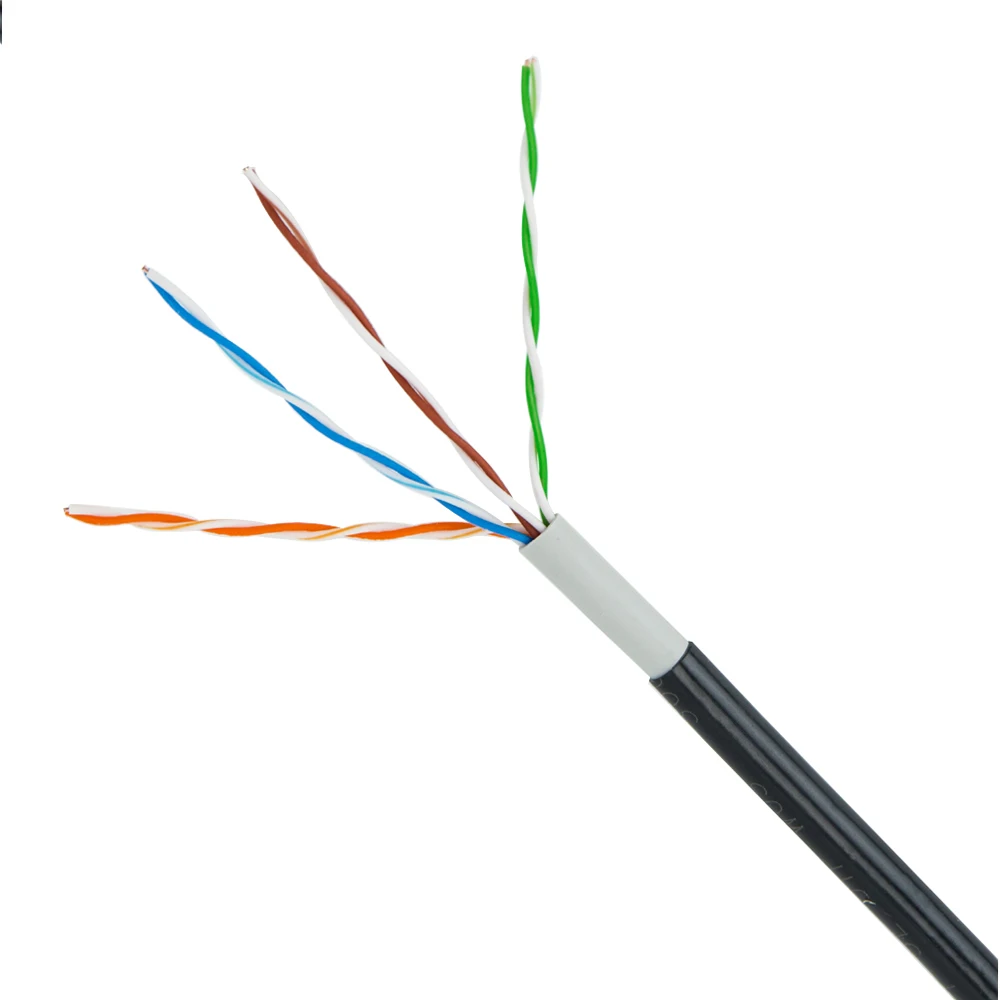

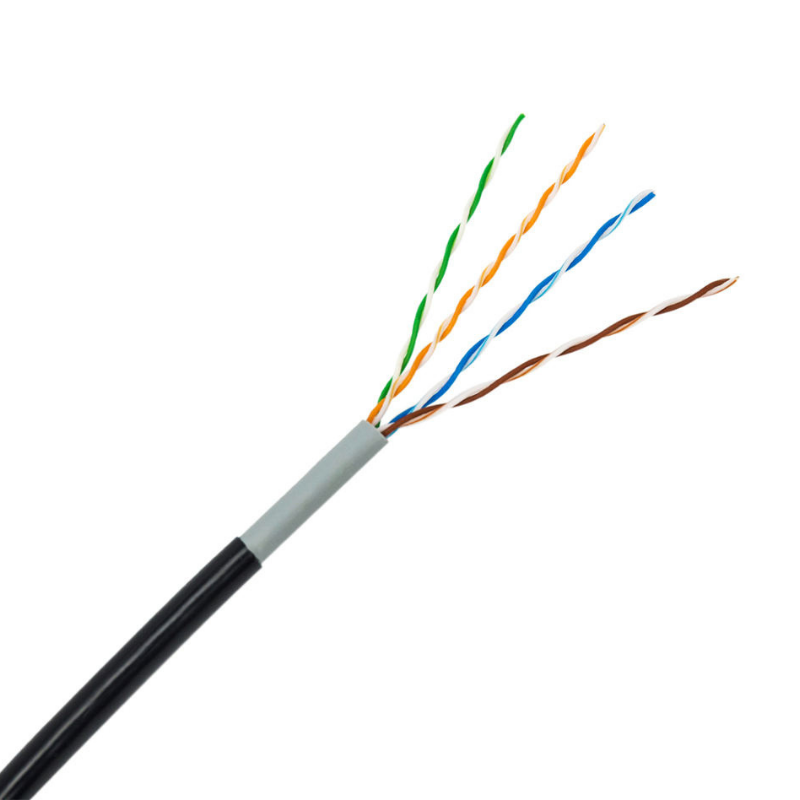

CAT5e U/UTP Lan Cable Outdoor

Unshielded Cat5e Outdoor Ethernet lan Cable, 1000ft (305m), 24AWG Solid Pure Bare Copper Wire, PVC with Reel

Features:

Up to 100MHz with 1G-T Speed, Support PoE/PoE+/PoE++ (IEEE 802.3af/at/bt)

Structure cabling for horizontal and building backbone

Compliant with ISO/IEC11801, ANSI/TIA-568.2-D Fire and Safety Standards

EN50173-1 Category5E

EN 50288-3-1,

Specification :

Cable Type	Category 5e	Shielding Type	UTP
Cable Jacket	PVC & LDPE	Cable Length	1000ft (305m)
Reference Bandwidth	100MHz	Data Rate Support	10/100/1000Base-T
Wire Gauge	24AWG	Conductor Type	Bare Copper
Putup Type	Reel	Number of Conductors	4 Pair
Conductor Diameter (mm)	0.500 ± 0.005	Cable Outer Diameter (mm)	6.00 ± 0.2
Maximum Installation Tension (N)	110	Bend Radius (mm)	26.8
Cable Color	various	Standard	ISO/IEC11801, ANSI/TIA-568.2-D
Operating Temperature	-40 to 75°C	Installation Temperature	-15 to 60°C
