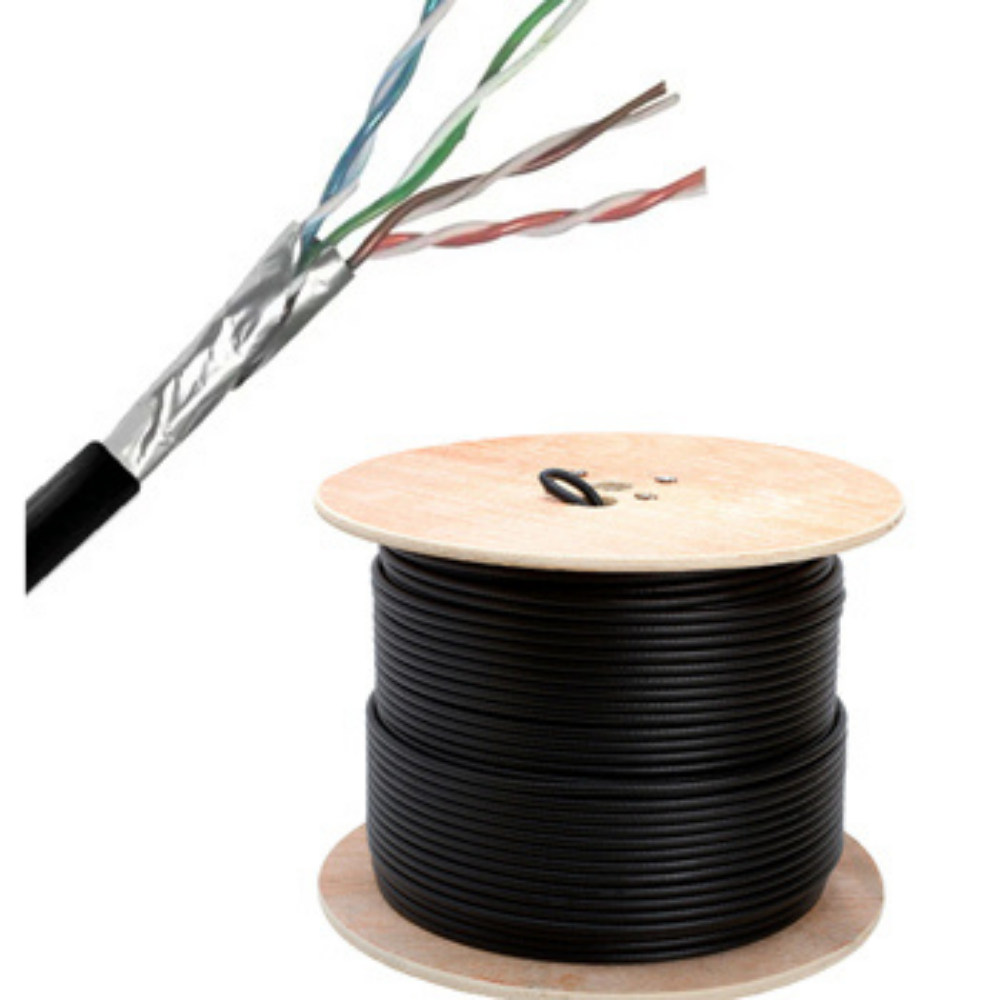

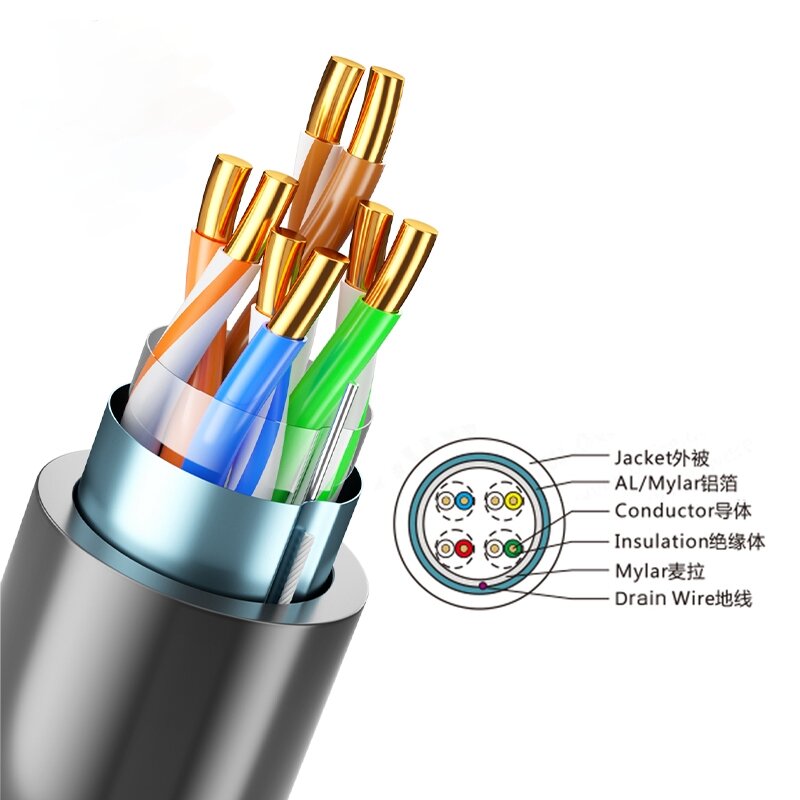

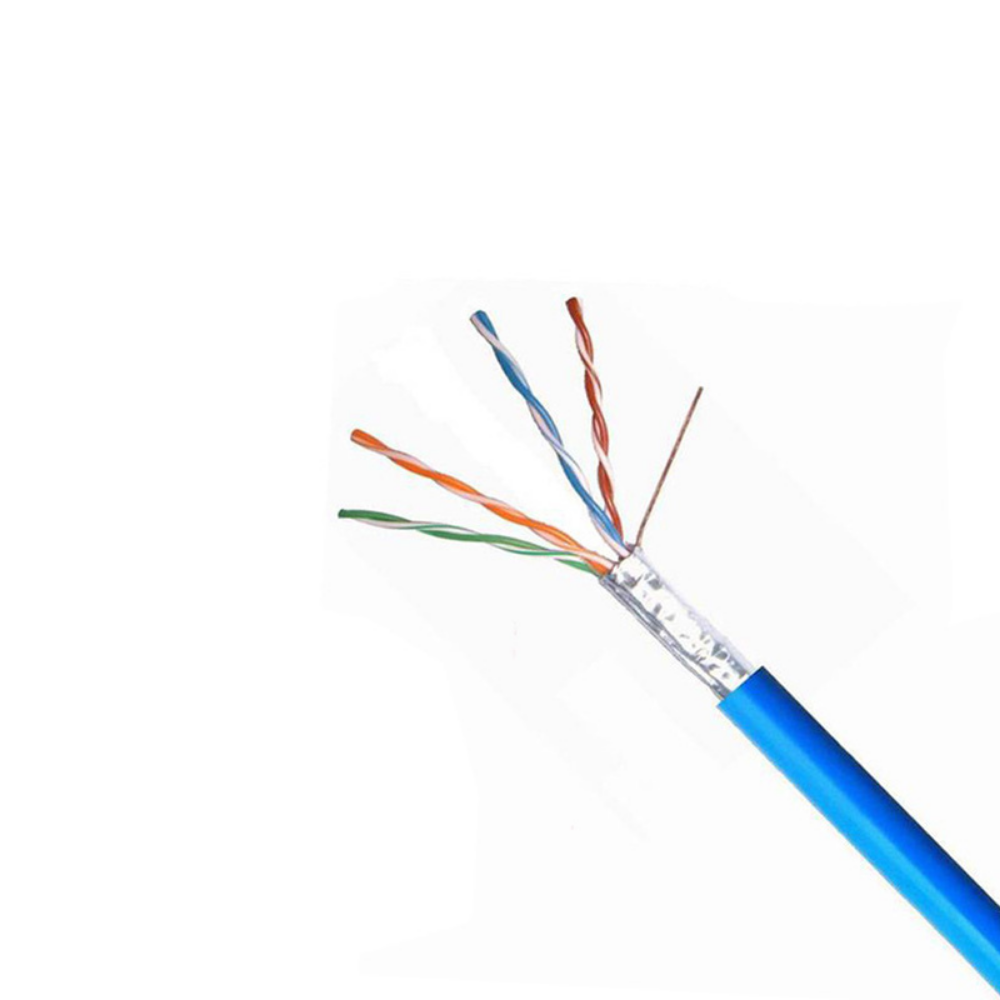

CAT5e F/UTP Lan Cable

Shielded Cat5e Ethernet lan Cable, 1000ft (305m), 24AWG Solid Pure Bare Copper Wire, PVC/LSZH

Features:

Up to 100MHz with 1G-T Speed, Support PoE/PoE+/PoE++ (IEEE 802.3af/at/bt)

Structure cabling for horizontal and building backbone

Compliant with ISO/IEC11801, ANSI/TIA-568.2-D Fire and Safety Standards

Specifications :

Cable Type	Category 5e	Shielding Type	FTP
Cable Jacket	PVC /LSZH	Cable Length	1000ft (305m)
Reference Bandwidth	100MHz	Data Rate Support	10/100/1000Base-T
Wire Gauge	24AWG	Conductor Type	Bare Copper
Putup Type	Reel	Number of Conductors	4 Pair
Conductor Diameter (mm)	0.50 ± 0.005	Cable Outer Diameter (mm)	6.20 ± 0.20
Maximum Installation Tension (N)	110	Bend Radius (mm)	26.4
Cable Color	various	Standard	ISO/IEC11801, ANSI/TIA-568.2-D
Operating Temperature	-15 to 75°C	Installation Temperature	-10 to 60°C
