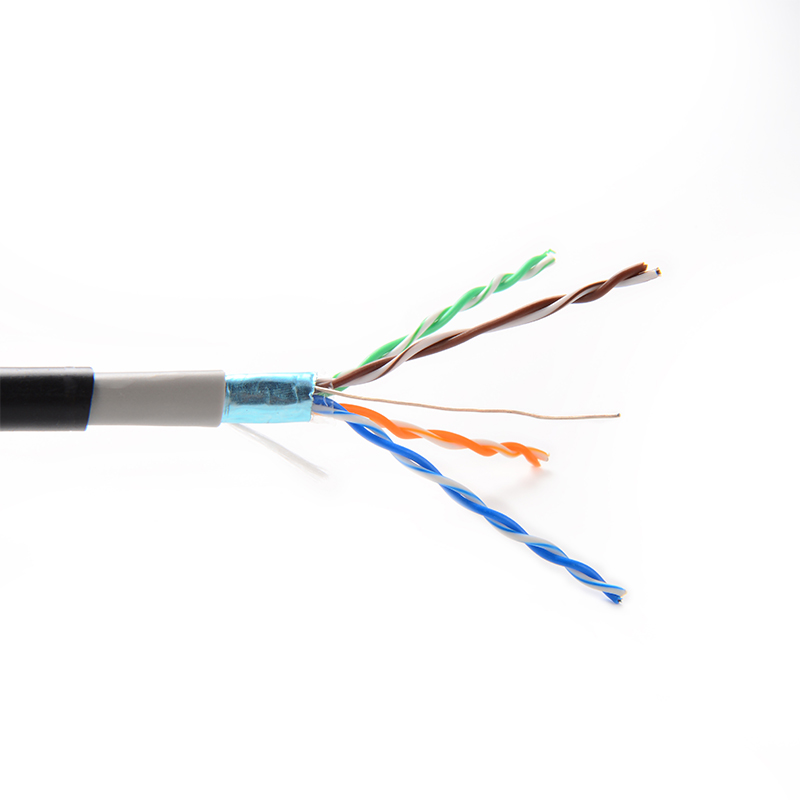

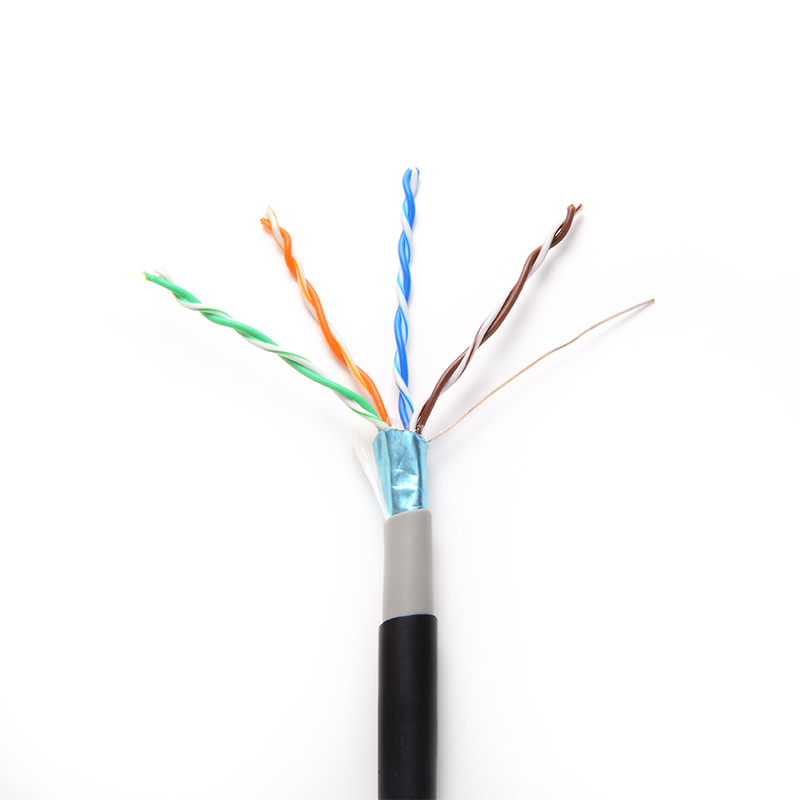

CAT5e F/UTP Lan Cable Outdoor

Shielded Cat5e Outdoor Ethernet Lan Cable, 1000ft (305m), 24AWG Solid Pure Bare Copper Wire, 100MHz PVC with Reel

Features:

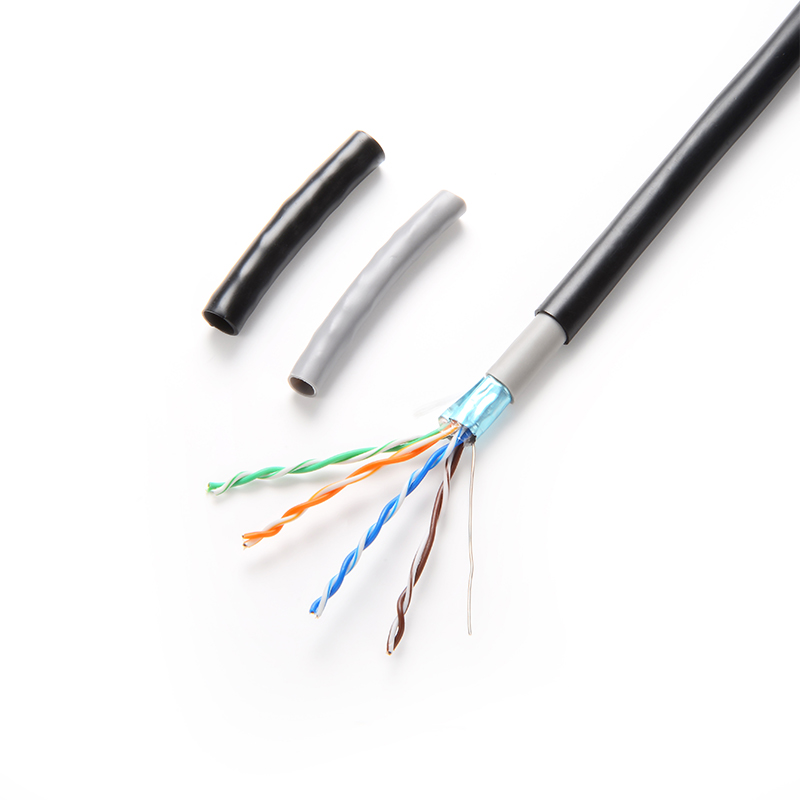

Double Jackets to Protect Against Cuts, Scraps and Tearing

Less Susceptible to RFI/EMI in Noisy Environments

UV Resistant Jacket Designed to Withstand Sunlight, Dirt, Snow, and Moisture

Up to 100MHz with 1G-T Speed, Support PoE/PoE+/PoE++ (IEEE 802.3af/at/bt)

Meets or Exceeds ISO/IEC 11801, ANSI/TIA-568.2-D Standards

Specifications :

Cable Type	Category 5e	Shielding Type	F/UTP
Cable Jacket	PVC & LDPE	Cable Length	1000ft (305m)
Reference Bandwidth	100MHz	Data Rate Support	10/100/1000Base-T
Wire Gauge	24AWG	Conductor Type	Bare Copper
Putup Type	Reel	Number of Conductors	4 Pair
Conductor Diameter (mm)	0.50 ± 0.005	Cable Outer Diameter (mm)	6.0± 0.25
Maximum Installation Tension (N)	110	Bend Radius (mm)	31.6
Cable Color	various	Standard	ISO/IEC11801, ANSI/TIA-568.2-D
Operating Temperature	-40 to 75°C	Installation Temperature	-15 to 60°C
