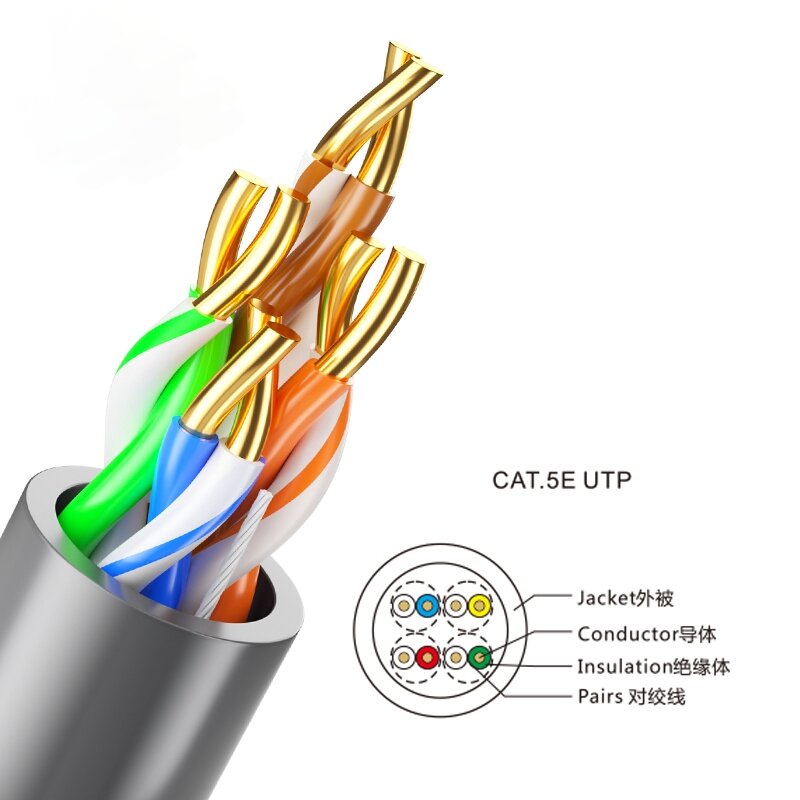

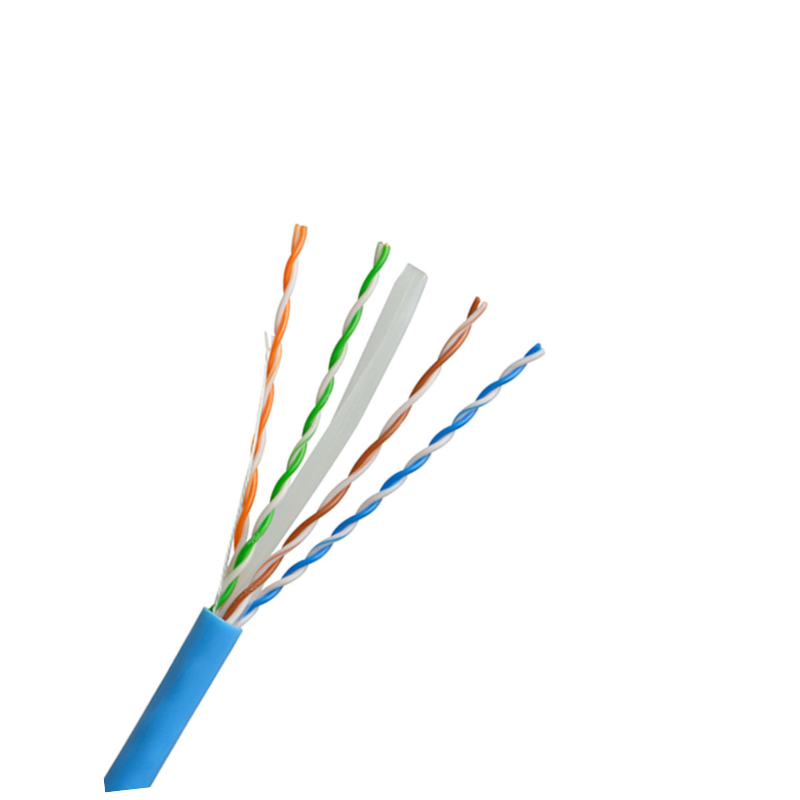

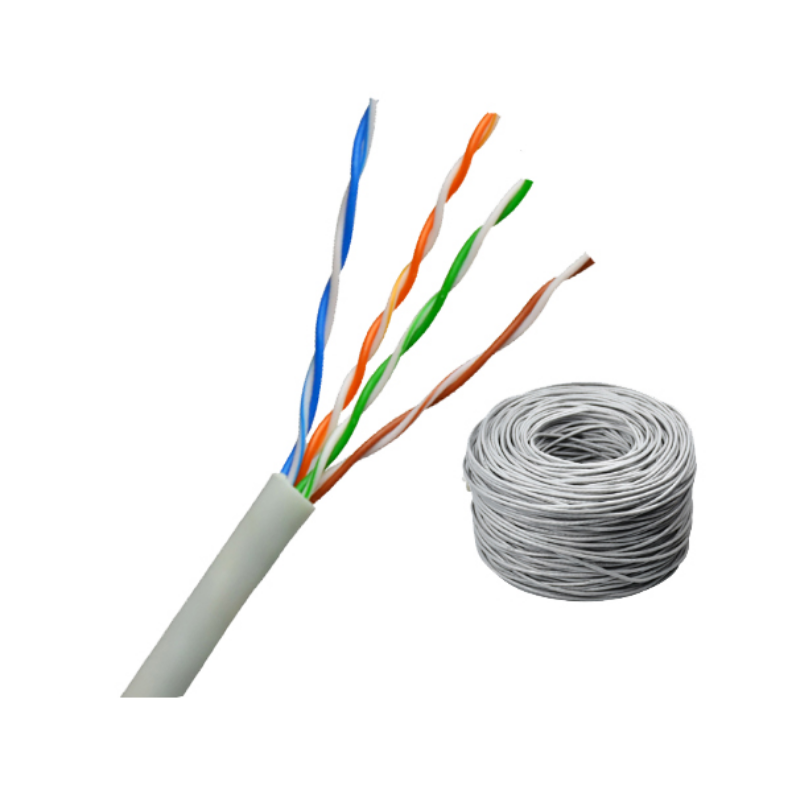

CAT5e U/UTP Lan Cable
Unshielded Cat5e Ethernet lan Cable, 1000ft (305m), 24AWG Solid Pure Bare Copper Wire, 100MHz, PVC /LSZH
Features:
Up to 100MHz with 1G-T Speed, Support PoE/PoE+/PoE++ (IEEE 802.3af/at/bt)
Structure cabling for horizontal and building backbone
Compliant with ISO/IEC11801, ANSI/TIA-568.2-D Fire and Safety Standards
Specifications :
Cable Type | Category 5e
| Shielding Type | UTP |
Cable Jacket | PVC /LSZH | Cable Length | 1000ft (305m) |
Reference Bandwidth | 100MHz | Data Rate Support | 10/100/1000Base-T |
Wire Gauge | 24AWG | Conductor Type | Bare Copper |
Putup Type | Reel | Number of Conductors | 4 Pair |
Conductor Diameter (mm) | 0.50 ± 0.005 | Cable Outer Diameter (mm) | 5.20 ± 0.20 |
Maximum Installation Tension (N) | 110 | Bend Radius (mm) | 21.6
|
Cable Color | various | Standard | ISO/IEC11801, ANSI/TIA-568.2-D |
Operating Temperature | -15 to 75°C | Installation Temperature | -10 to 60°C |
