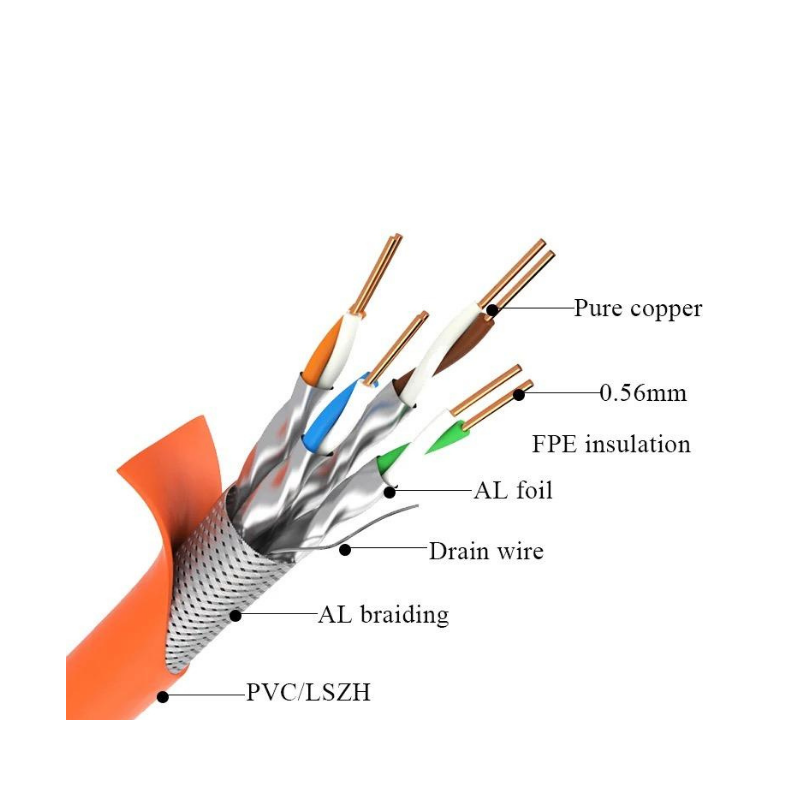

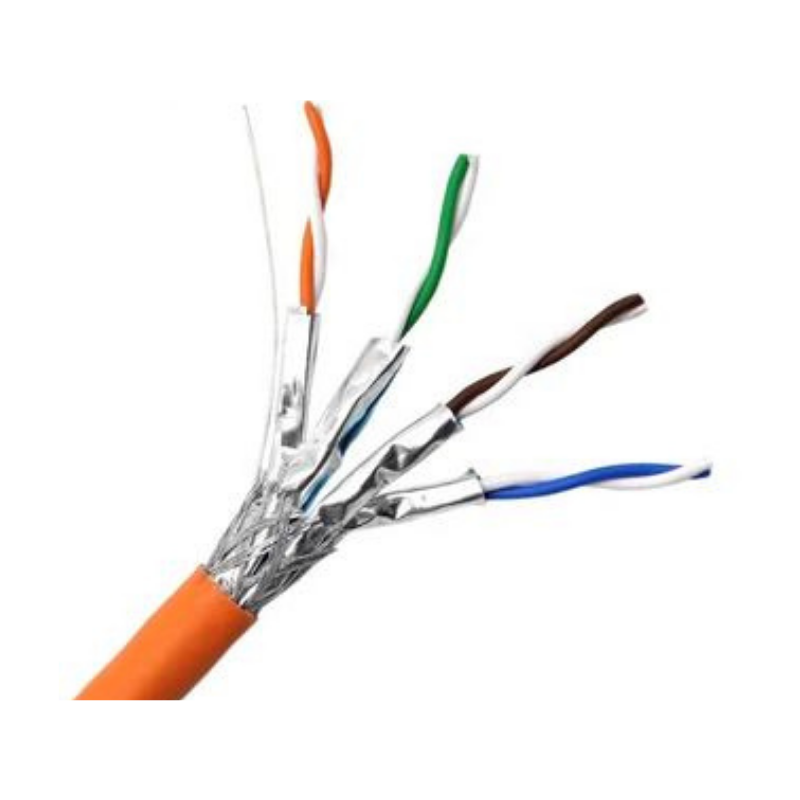

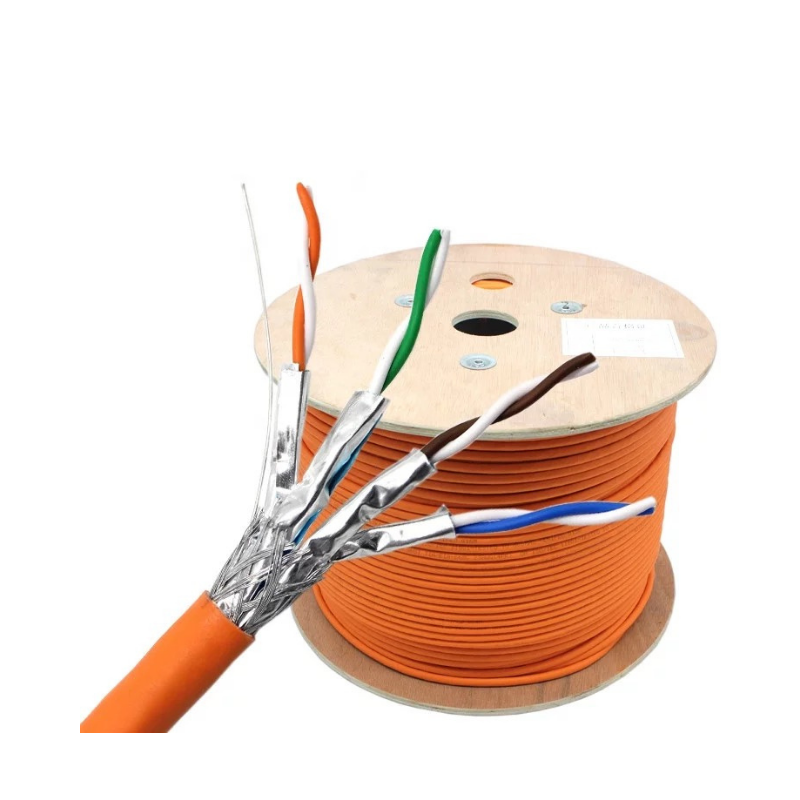

CAT8 S/FTP Lan Cable
High speed Cat8 Ethernet Lan Cable, 1000ft (305m), 23AWG Solid Pure Bare Copper Wire,2000MHz, PVC/LSZH
Features:
Up to 2000MHz with 25/40G-T Speed, Support PoE/PoE+/PoE++ (IEEE 802.3af/at/bt)
Structure cabling for horizontal and building backbone
Compliant with ISO/IEC11801, ANSI/TIA-568.2-D Fire and Safety Standards
Specifications:
Cable Type | Category 8
| Shielding Type | S/FTP |
Cable Jacket | PVC /LSZH | Cable Length | 1000ft (305m) |
Reference Bandwidth | 2000MHz | Data Rate Support | 25G/40GBase-T |
Wire Gauge | 22AWG | Conductor Type | Bare Copper |
Putup Type | Reel | Number of Conductors | 4 Pair |
Conductor Diameter (mm) | 0.6 ± 0.02 | Cable Outer Diameter (mm) | 8.2 ± 0.50 |
Maximum Installation Tension (N) | 110 | Bend Radius (mm) | 32.4 |
Cable Color | various | Standard | ISO/IEC11801, ANSI/TIA-568.2-D |
Operating Temperature | -15 to 75°C | Installation Temperature | -10 to 60°C |
