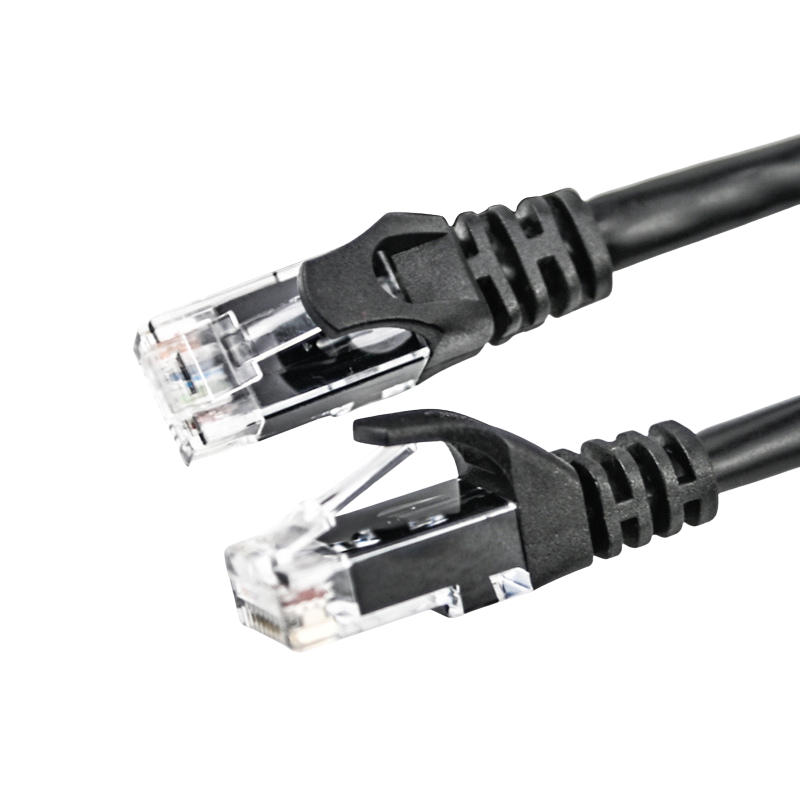

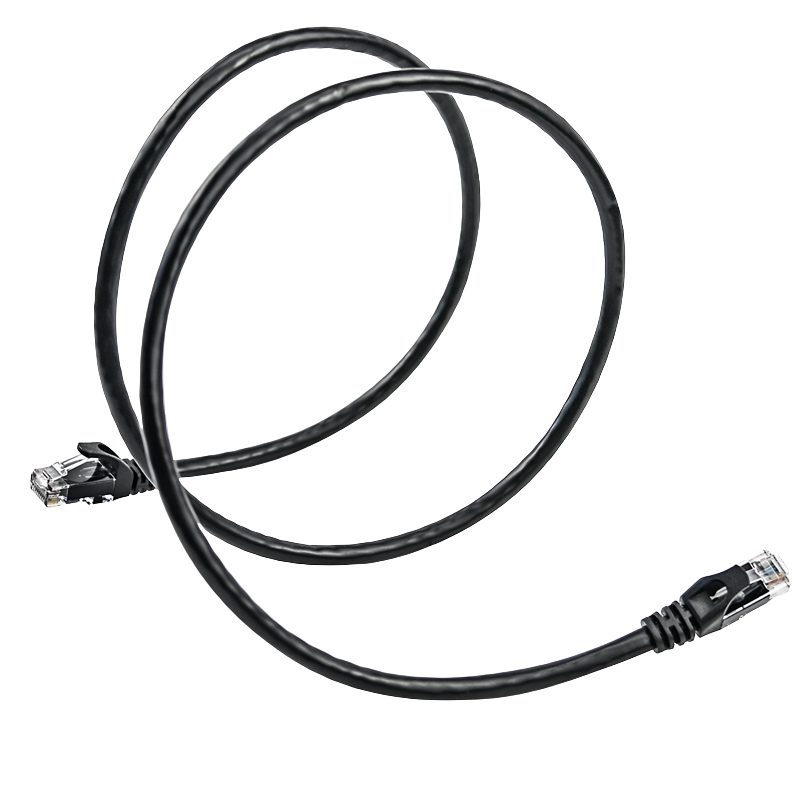

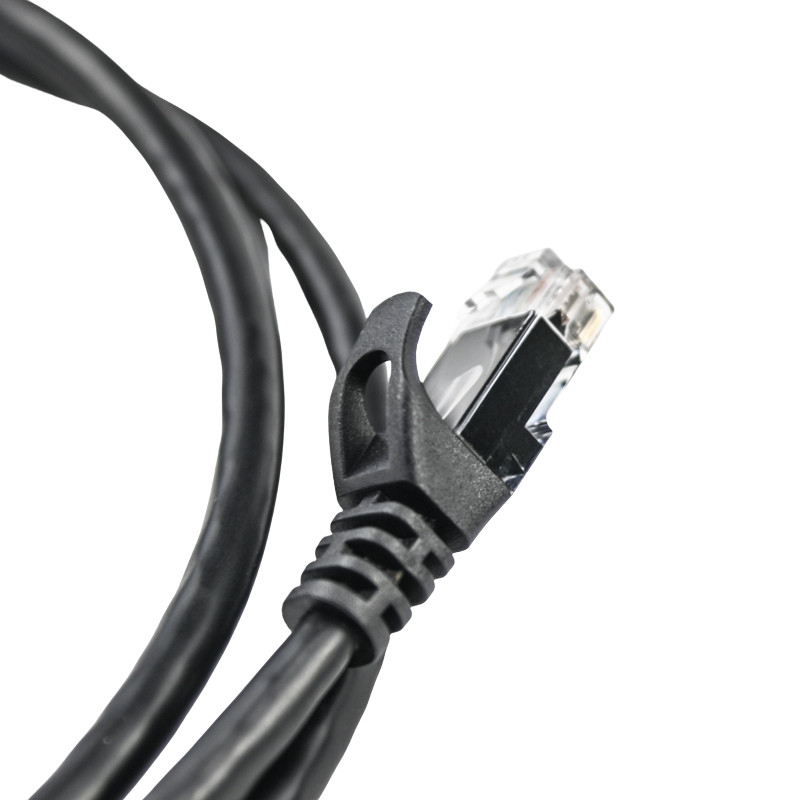

CAT6a U/UTP Patch Cable 24AWG

Cat6a 24AWG Unshielded (U/UTP) PVC Ethernet Network Patch Cable

Features :

Exceed ANSI/TIA-568.2-D Category 6 and ISO 11801 Class EA Standards

Up to 500MHz with 1G/2.5G/5G/10G Base-T Speed, Support PoE/PoE+/PoE++ (IEEE 802.3af/at/bt)

Performance Tested with Fluke and Wired T568B

Bare Copper Conductors with Stable Transmission Performance

Use in Patch Panel or Equipment Connections in Enterprise Networks and Data Center

Variety of Cable Colors and Lengths to Meet Individual Requirements and System Flexibility

Specification:

Cable Type: Cat6a Patch Cable

Conductor Material : BC

Cable Jacket: PVC/LSZH

Data Rate Support: 1000Base-T and Maximum to 10GBase-T

Gauge (AWG) : 24 (7/0.20mm)

Plug /Jack Compatibility : RJ45

Wire Scheme: T568B, Straight

Shielding Type : Unshielded (UTP)

Conductor Type : Stranded

Colour/Length: Customized

Maximum (Tested) Frequency : 500MHz

Cable Outer Diameter (mm) : 6.1

Twisted Pairs: 4 Pairs

Plug Type: 8 Position
